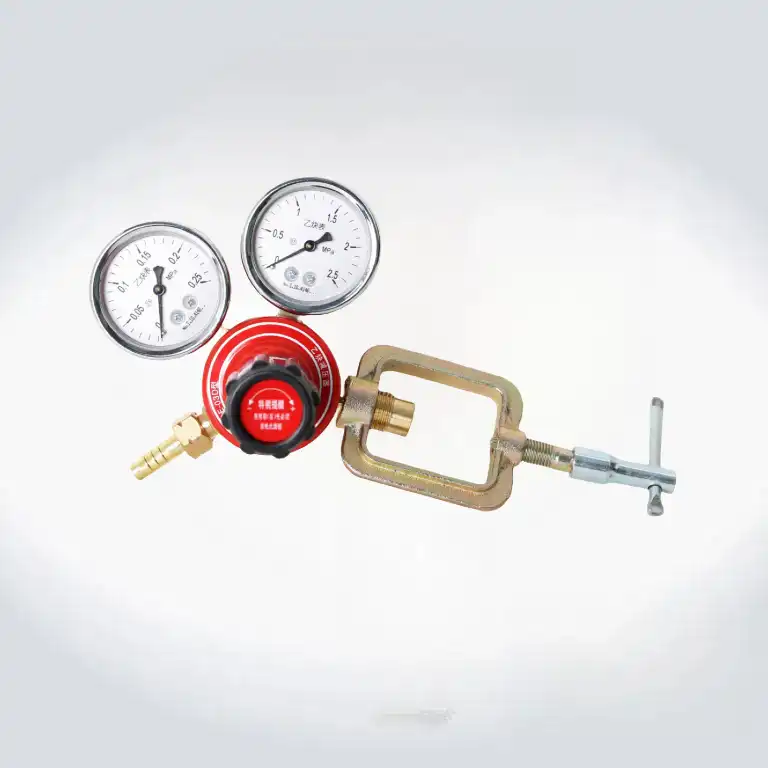

XRT-General Brass Acetylene Gas Pressure Regulator,suitable for industrial manufacturing, laboratory, MIG/TIG welding and other occasions.Forged from high-quality brass and complemented by a high-strength aluminum alloy cover, this regulator ensures exceptional durability and performance. The inlet features a patented brass filtration device, enhancing gas purity by maximizing filtering efficiency. Equipped with a high-quality rubber diaphragm and a high-purity stainless steel spring, it delivers stable and precise pressure control. The integrated pressure gauge, designed with a slow gas release port, has undergone rigorous fatigue testing of up to 25,000 cycles, ensuring long-term resilience.
SpecificationsProduct Name:General Brass Acetylene Gas Pressure Regulator
Model: YQE-03
Gas: Acetylence
Rated Inlet Pressure：0～1.6MPa
Rated Outlet Pressure：0～0.15MPa
Rated Flow: 0～5m³/h
Inlet Thread: Zahran Connector
Outlet Thread: M16x1.5LH(M)
Body: It is forged from high-quality brass.
Cover: It is made of high strength aluminum alloy by die casting.
Inlet Part: There is a built-in patent brass device for gas filtering inside the inlet, which increases the filtering area and the filtering efficiency.
Cover Structure: With high quality rubber diaphragm and high-purity stainless steel spring inside the cover, the pressure is more stable and easier to control.
Pressure Gauge: It is equipped with a slow gas hole and can pass 25000 times fatigue tests.
