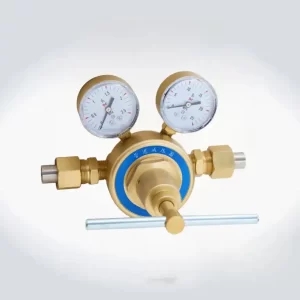

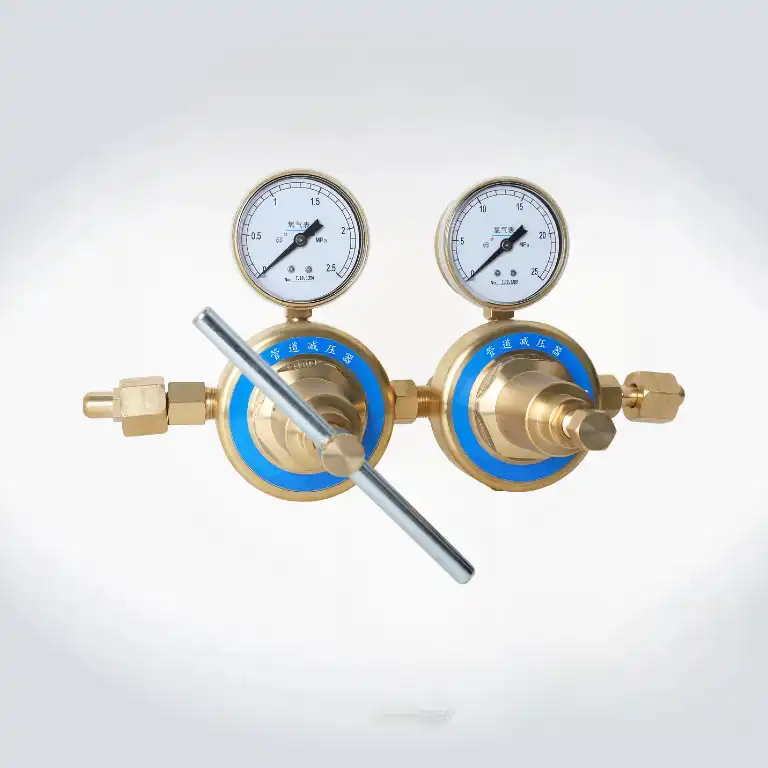

XRT-Two Stage Gas Regulator for Pipeline, crafted by Hysitron Instruments, is engineered for precise control of medium and high-pressure gases with large flow requirements. Constructed from high-quality brass, the regulator ensures exceptional durability and performance. The inlet features a patented brass filtration device, enhancing gas purity by maximizing filtering efficiency. Its two-stage pressure reduction design delivers unparalleled accuracy and stability in output pressure. The robust cover, available in hot-forged brass or chromium-plated high-strength zinc alloy, integrates a rubber and metal diaphragm system with a stainless steel spring, ensuring extended service life and fine-tuned pressure control. The pressure gauge, coated with gold paint and equipped with an explosion-proof hole and removable organic glass cover, withstands up to 25,000 fatigue tests, guaranteeing long-term reliability in demanding industrial and laboratory environments.
SpecificationsProduct Name: Two Stage Gas Regulator For Pipeline
Model: YQY-11(Oxygen),YQD-11(Nitrogen)
Rated Inlet Pressure：0～15MPa
Rated Outlet Pressure：0～2MPa
Rated Flow: 0～150m3/h
Inlet Thread: G5/8″-RH(F)
Outlet Thread: M14x1.5RH(M)
Body：The body is made of high quality brass.
Cover: There are two materials to choose: 1) Hot forging brass; 2) High- strength zinc alloy with chromium plated.
Inlet port：There is a built-in patent brass device for gas filtering inside the inlet, which increases the filtering area and the filtering efficiency.
Structure：With two-stage reduce pressure structure, the output pressure is more accurate and stable.
Cover Structure：Rubber diaphragm combined with metal diaphragm increases the product using life. With stainless steel spring inside the cover, the fine adjusting handle, the pressure is more stable and easier to control.
Pressure Gauge：The case has a gold paint coating, an explosion-proof hole and removable organic glass cover. It can pass 25000 fatigue tests.
