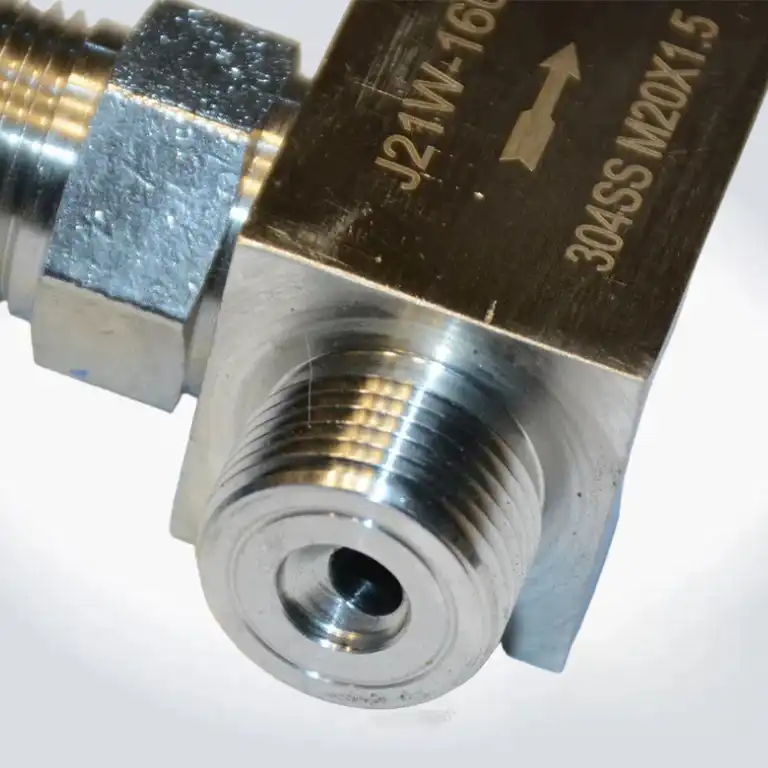

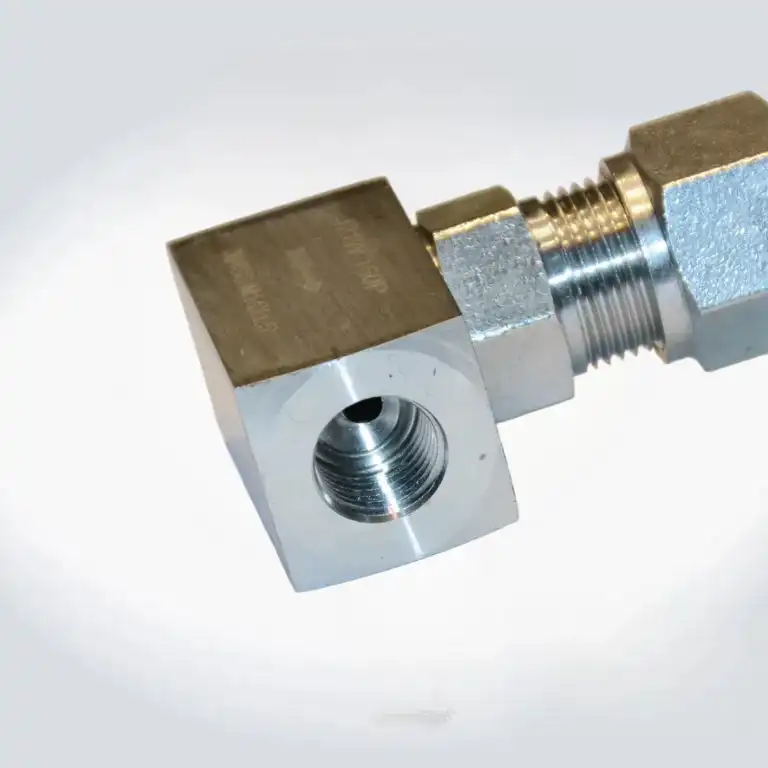

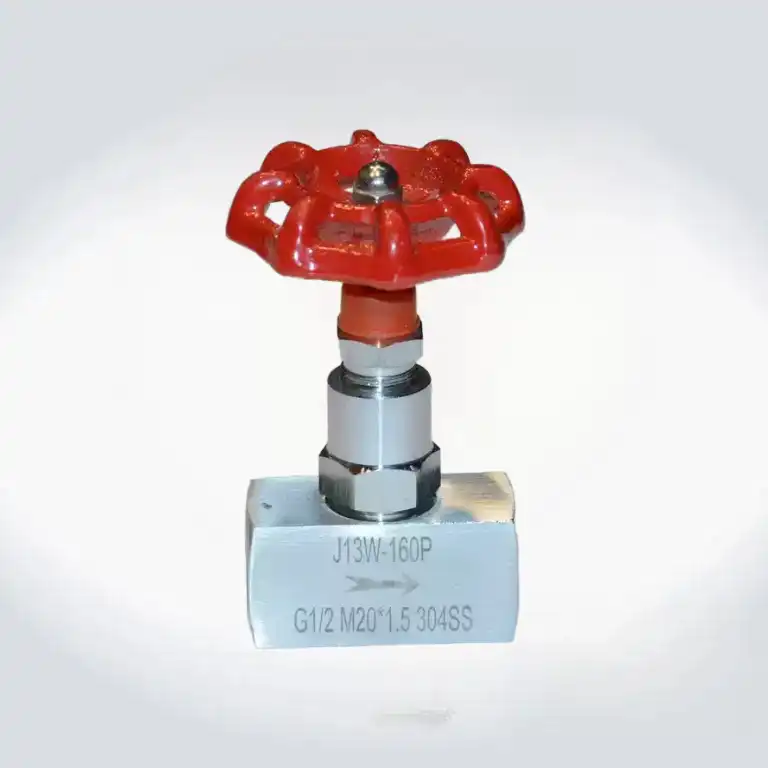

XRT-The Stainless Steel Pressure Gauge Needle Valves is manufactured using high-quality 304 and 316 stainless steel, specifically designed for precise control and adjustment of media flow in pressure gauge applications. These needle valves offer exceptional corrosion resistance and a wide temperature range (-50°C to +200°C), ensuring long-term reliable performance in extreme environments. The product is available in various connection types (such as NPT and BSP threads) and sizes (ranging from 1/8″ to 1/2″) to meet diverse system requirements. Optional seat materials, such as PTFE or RPTFE, ensure bubble-tight sealing performance.
SpecificationsProduct Name: Stainless Steel Pressure Gauge Needle Valves
Model: XRT-GNV
Material: Stainless Steel (e.g., 304, 316, or 316L)
Connection Type: Threaded (NPT, BSP, or Metric), Flanged, or Compression Fitting
Pressure Rating: 1000 PSI, 3000 PSI, 5000 PSI, or 10000 PSI
Temperature Range: -50°C to 200°C (-58°F to 392°F)
Valve Size: 1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″
Port Size: Same as valve size or reduced port options
End Connection: Male x Male, Male x Female, Female x Female
Media Compatibility: Water, Oil, Gas, Steam, Corrosive Fluids
Flow Characteristics: Linear Flow Control
Handle Type: Manual Knob, Lever, or Adjustable Knob
Seal Material: PTFE, Viton, NBR, or Metal-to-Metal
Body Design: Straight Through, Angle, or Multi-Port
Operating Torque: Low to Medium (varies based on size and design)
Surface Finish: Electro-Polished, Passivated, or Standard Finish
Mounting Orientation Horizontal or Vertical
Leakage Rate: Bubble-Tight or ANSI/FCI 70-2 Standard
Weight: Varies by size; typically lightweight for compact designs
Applications Industrial Machinery, Chemical Processing, Oil & Gas, HVAC, Water Treatment
