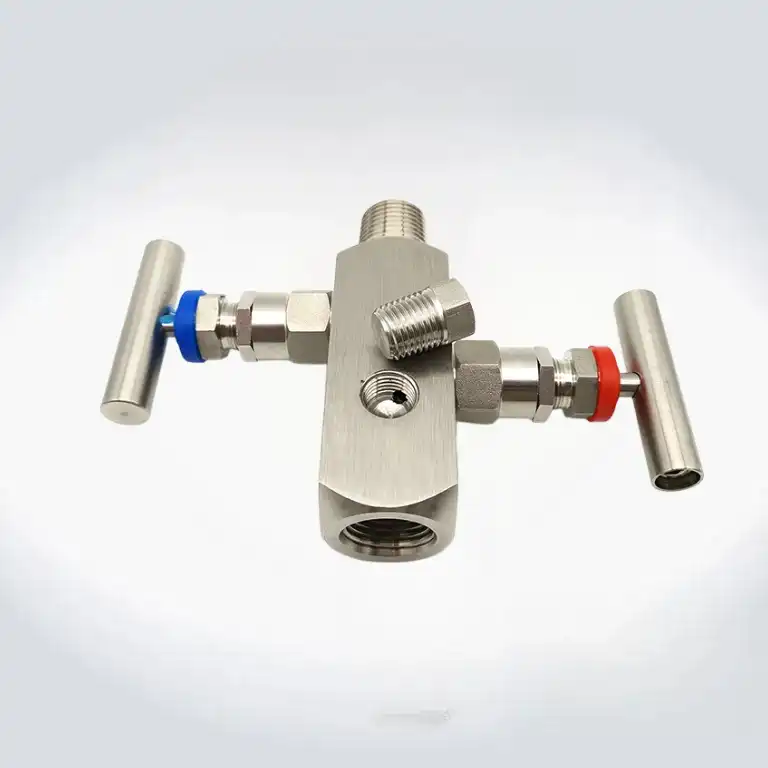

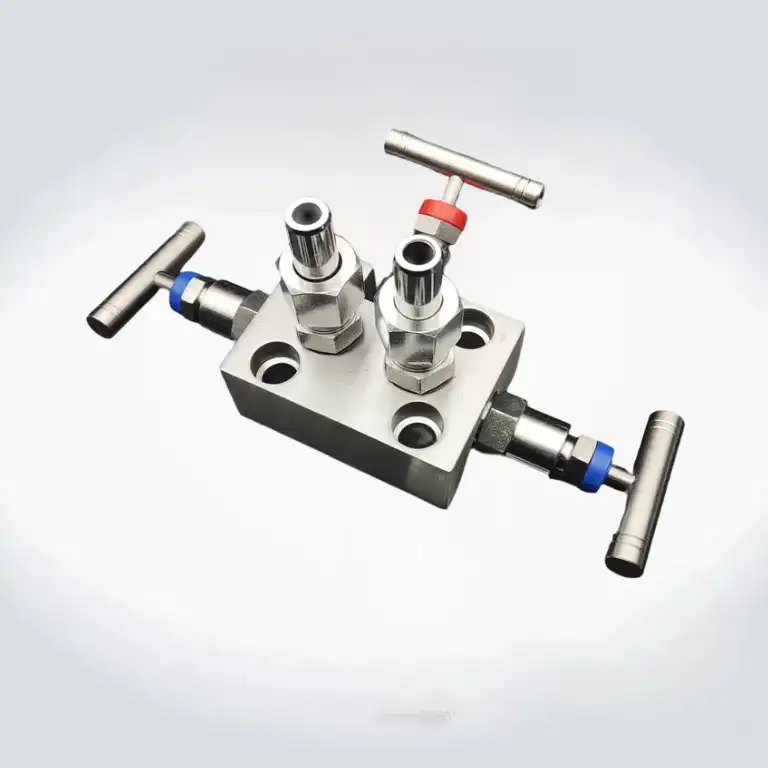

XRT-Stainless Steel Integrated Three-valve Manifold, stands as a testament to precision and reliability in the realm of transmitter accessories. Designed to meet the stringent demands of industrial applications, this manifold integrates seamlessly with a variety of pressure transmitters, enhancing their functionality while ensuring optimal performance under challenging conditions. Constructed from high-quality stainless steel, it offers superior corrosion resistance, making it ideal for use in harsh environments.
SpecificationsProduct Name: Stainless Steel Integrated Three-valve Manifold for Pressure Transmitter
Model: XRT-TVM
Material: 304, 316, 316L, HC-276, Monel
Maximum Pressure: 6000 PSI (413.68 BAR) for 304, 316, 316L, HC276; 5000 PSI (344.7 BAR) for Monel
Operating Temperature: PTFE Sealing,-38°C to 180°C (-100°F to 356°F);Graphite Sealing,-24°C to 480°C (-75°F to 896°F)
Port Size:1/2 NPT
Internal Diameter:Customizable
Inlet (2×): M20×1.5 /Φ14 (Swivel Welding Tube) (Center Distance 35mm)
Outlet (2×):Flange (Connected to Transmitter) (Center Distance 54mm)
Bolt Hole Center Distance:5 4mm × 41.3mm
Bolt Thread: UNF7/16-20, M10 × 1.5
Pressure Rating：16 MPa – 40 MPa, 3532 PSI – 6000 PSI
Operating Temperature Range： -65°F (-54°C) to 450°F (232°C), -1200°F (648°C)
Compatible Transmitters：3051, 3095, 1151, EJA, FX-2, FCX-A/C, Honeywell ST3000 Series
