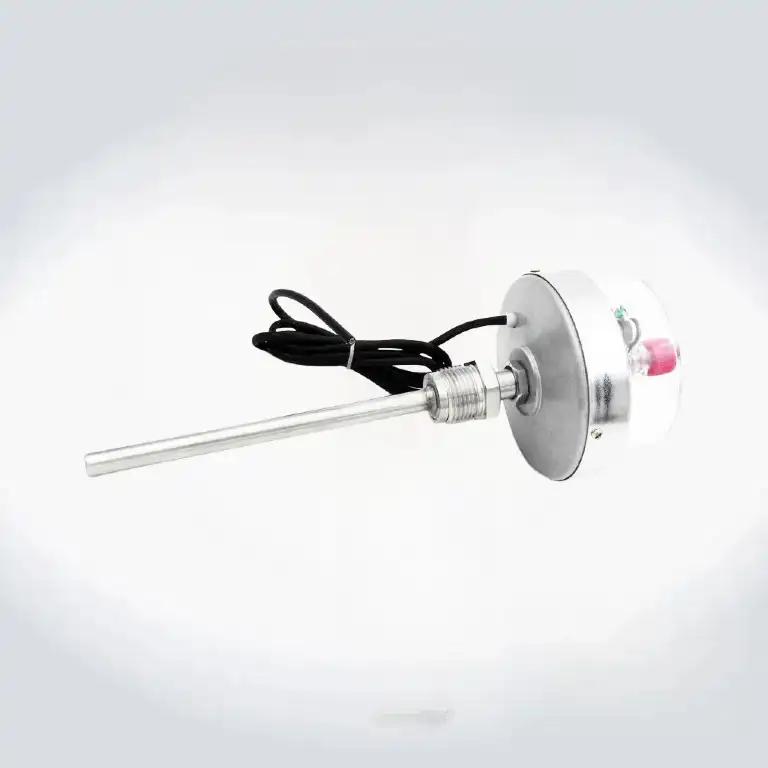

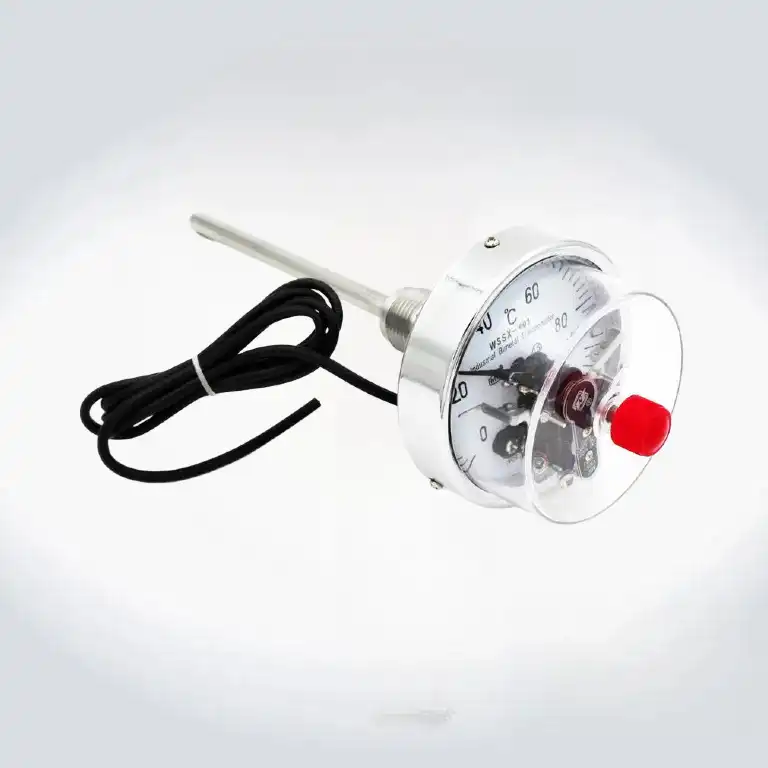

XRT-Electrical Contact Bimetal Thermometer,designed for accurate measurement in low to medium temperature ranges. These instruments are suitable for monitoring temperatures in both gases and liquids. Featuring an integrated electrical contact system, the bimetallic thermometers not only measure temperature but also trigger control signals or alarms when the measured temperature exceeds a preset threshold. This makes them ideal for applications requiring precise temperature monitoring and automated response mechanisms.
SpecificationsProduct Name: Stainless Steel Electrical Contact Bimetal Thermometer
Model: WSSX-301H,WSSX-311H,WSSX-401H,WSSX-411H,WSSX-501H,WSSX-511H,WSSX-481H
Nominal Diameter: φ60mm,φ100mm,φ150mm
Accuracy Rating: 1.5%
Connection Thread: M16*1.5,M27x2, G1/2, PT1/2
Connection Types: Bottom Connection，Back Connection,Universal Angle
Installation Method: Threaded Installation, Flanged Installation
Electric Contact: With upper and lower limit
Contact Rated Power: 10VA
Contact Max.Voltage: 220V AC
Temperature Range:-80～ +40°C,-40～ +80°C,0～ 50°C,0～ 100°C,0～ 150°C,0～ 200°C,0～ 300°C,0～ 400°C,0～ 500°C,0～ 600°C
Case Material: Stainless steel SUS304
Temperature Sensing Tube Material: stainless steel tube
Temperature Tube Diameter: φ6mm, φ10mm
Stem Length: 75～3000mm as customers needs,when length with 1000mm, stem diameter is
φ12mm,Temperature with 0-50ºC, stem length should≥150mm
Joint Material: Stainless steel SUS304
Instrument Glass: Ordinary glass
Protection Level: IP55
