XRT-The stainless steel cooling tower,crafted from premium 304 and 316 stainless steel materials, specifically designed for extreme environments. The products exhibit excellent corrosion resistance and a wide temperature tolerance range (-50°C to +600°C), with various designs including plate fins and pin fins, as well as surface treatment options such as polishing, brushing, passivation, and coating. Multiple mounting methods (screw mount, adhesive mount, and welded mount) ensure ease of integration. These cooling towers are suitable for applications in industrial equipment, marine environments, and outdoor electronics.

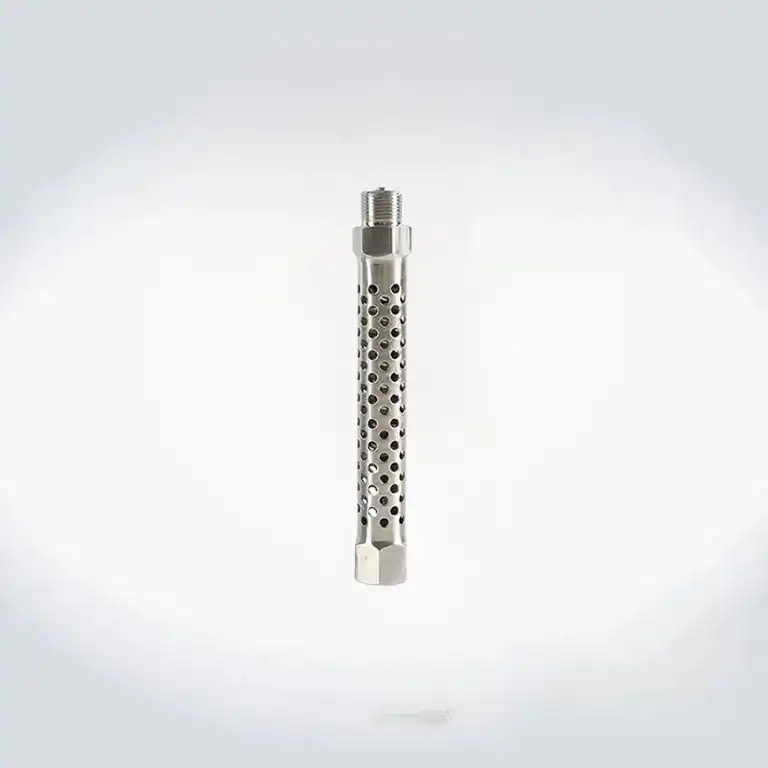

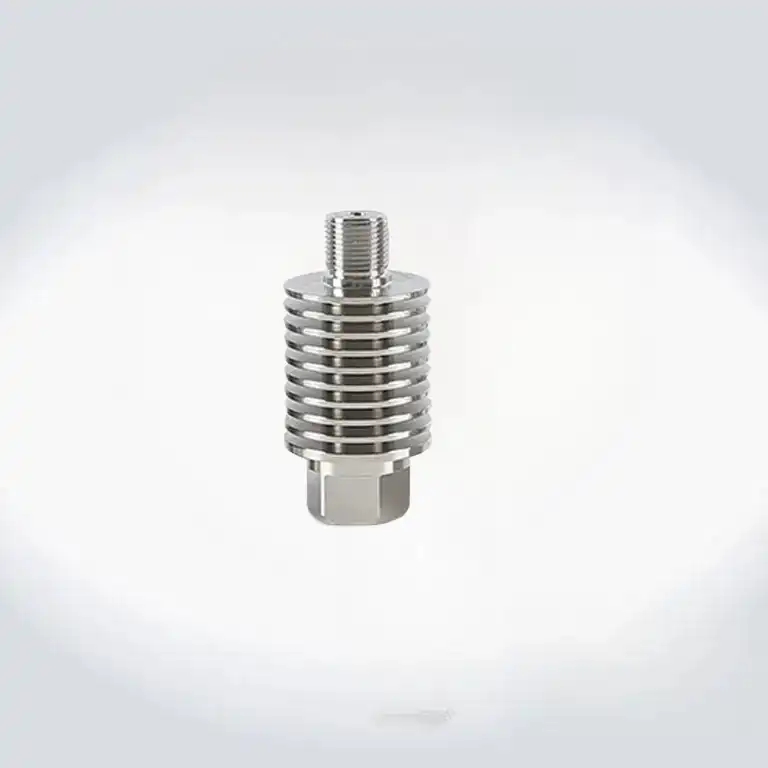

SpecificationsProduct Name: Stainless Steel Cooling Tower for Pressure Gauge
Model: XRT-CT
Material: Stainless Steel (304, 316)
Thermal Conductivity: 16 W/m·K – 25 W/m·K
Dimensions:
Length,20mm – 300mm
Width,20mm – 150mm
Height,10mm – 100mm
Fin Design:Plate-fin, Pin-fin
Fin Thickness:0.5mm – 2mm
Fin Density:5 fins/cm – 15 fins/cm
Base Thickness:2mm – 8mm
Surface Finish:Polished, Brushed, Passivated, Coated
Weight:100g – 3000g
Mounting Type:Screw Mount, Adhesive Mount, Welded Mount
Operating Temperature:-50°C to +600°C
Heat Dissipation Power:5W – 100W
Airflow Dependency:Natural Convection, Forced Airflow (Fan)
Noise Level (if fan used):<25 dB – 50 dB
Corrosion Resistance:High
