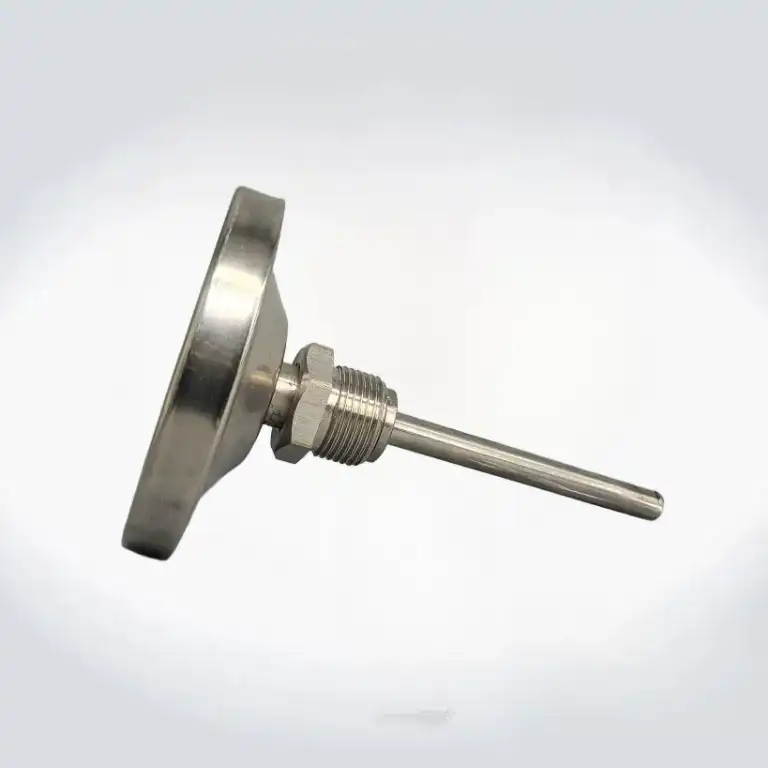

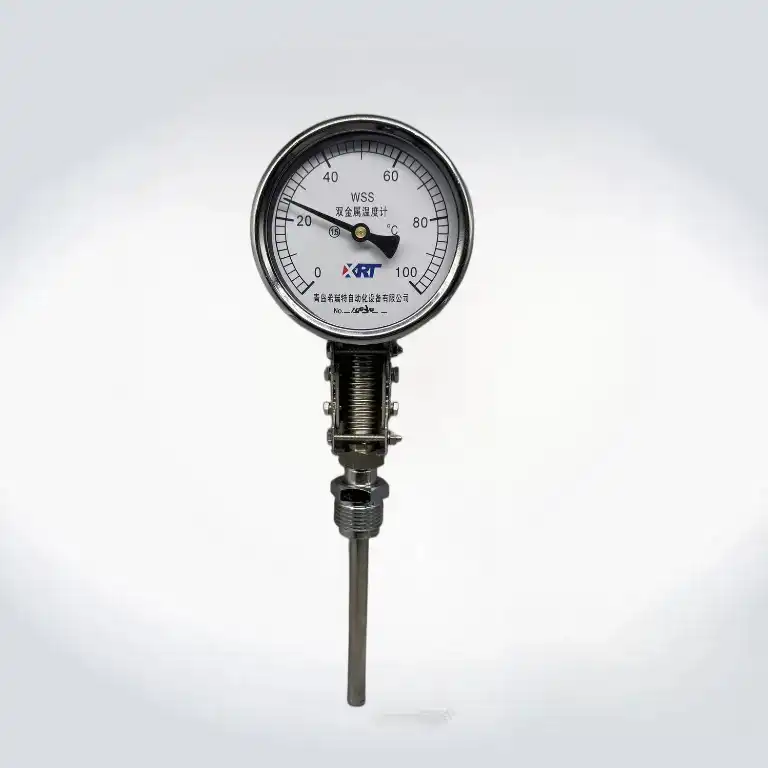

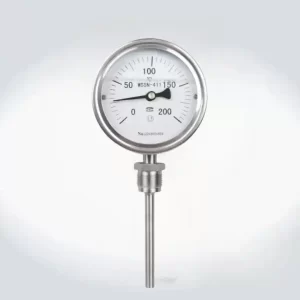

The bimetal thermometer is used for measuring medium and low temperatures in field detection. It can directly measure the temperature of gases and liquids. Made from high-quality stainless steel, it provides enhanced durability and corrosion resistance, making it ideal for harsh environments. Compared to glass mercury thermometers, it offers the advantages of being non-toxic, easy to read, and robust.
SpecificationsProduct Name: Stainless Steel Bimental Thermometer
Model: WSS-301H,WSS-311H,WSS-401H,WSS-411H,WSS-501H,WSS-511H,WSS-481H
Nominal Diameter: φ60mm, φ100mm, φ150mm
Accuracy Rating: 1.5%
Connection Thread: M16x1.5, M27x2, G1/2, PT1/2
Connection Types: Bottom Connection，Back Connection,Universal Angle
Installation Method: Threaded Installation, Flanged Installation
Temperature Range: 20～ +80°C, 0～ 100°C，0 ～ 150°C，0～ 200°C, 0～ 300°C，0～ 400°C,0～ 500 °C
Case Material: Stainless steel SUS304, iron case chrome plating(Steel plate 08F)
Temperature Sensing Tube Material: Stainless steel tube
Temperature Tube Diameter: φ6mm, φ10mm
Joint Material: carbon steel chrome plated or stainless steel SUS304
Instrument Glass: Ordinary glass
Protection Level: IP55
