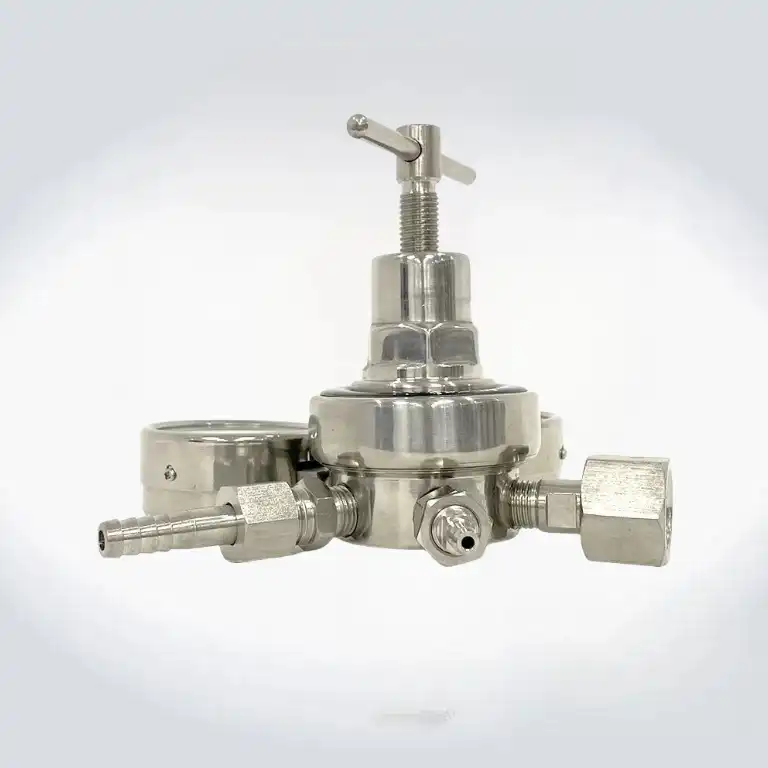

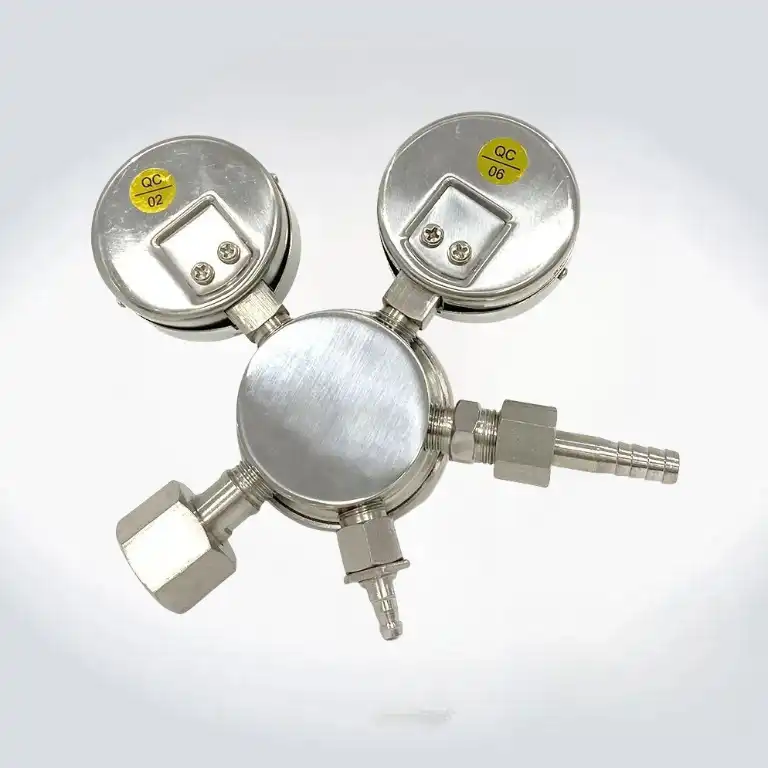

XRT-the Stainless Steel Ammonia Regulator,mainly used in medium and small pressure gas control systems, and is suitable for pure gas,standard gas, corrosive gas, etc. Constructed entirely from high-grade stainless steel, with a polished body and cover, it combines durability with an elegant appearance. The inlet features a patented brass filtration device, ensuring enhanced gas purity by maximizing filtering efficiency. Equipped with a pressure gauge designed with a slow gas release port and tested to withstand 25,000 fatigue cycles, this regulator delivers reliable and stable performance.
Product Name: Stainless Steel Ammonia Regulator
Model: YQA-401
Gas: Ammonia
Rated Inlet Pressure:0~3MPa
Rated Outlet Pressure:0~0.08MPa
Rated Flow: 0~15L/min
Inlet Thread: G1/2″-RH(F)
Outlet Thread: M16x1.5RH(M)
Structure: It is all made of stainless steel. The body and cover is polished. The appearance is elegant.
Inlet Port: There is a built-in patent brass device for gas filtering inside the inlet, which increases the filtering area and the filtering efficiency.
Pressure Gauge: It is equpped with a slow gas hole and can pass 25000 fatigue tests.
