Specifications

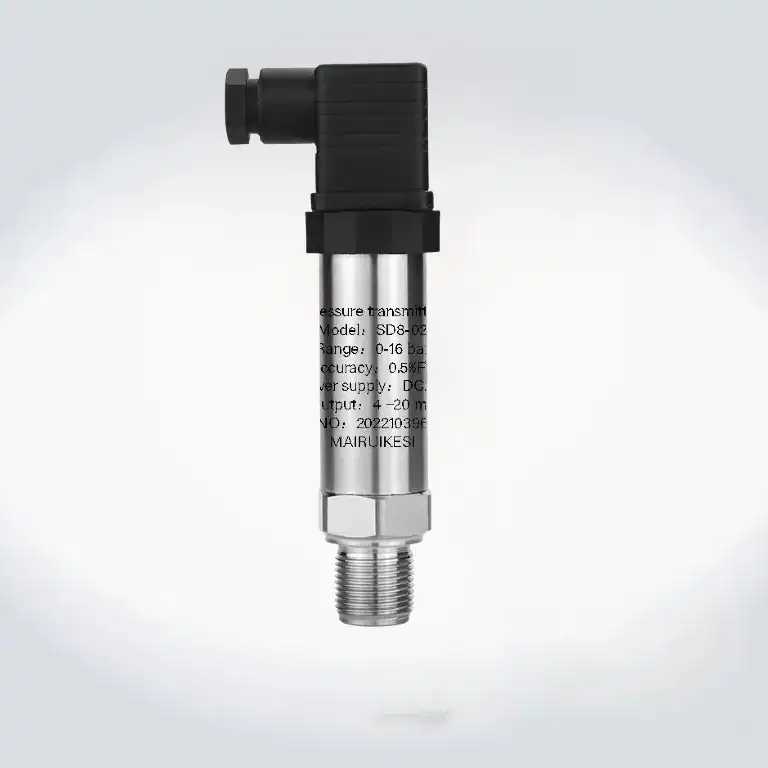

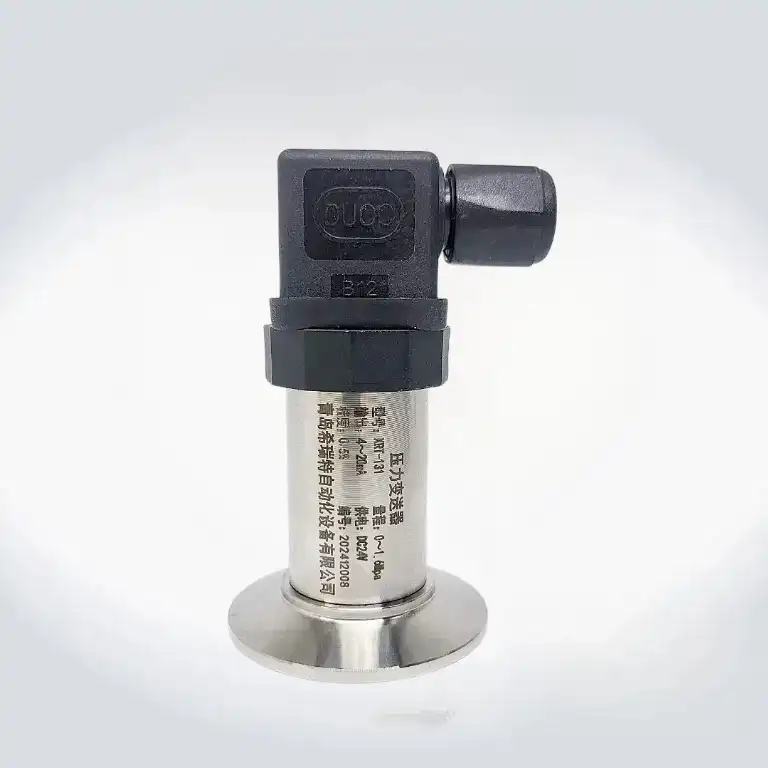

Product Name: High-precision Universal Pressure Transmitter
Model: XRTB100
Measuring Medium：Liquid, Gas or Steam
Pressure Type: Gauge, Absolute or Sealed Gauge
Gauge Pressure Range: (-100～0) kPa, (0～10) kPa to (0～100) MPa
Absolute Pressure Range: (0～70) kPa to (0～35) MPa
Overload Pressure: 150%FS
Accuracy：±0.5%FS (standard), ±0.25%FS (high precision). Optional ±0.1%FS for specialized applications.
Supply Voltage: 9～36VDC (standard), With display or 0～10VDC output: 12～30VDC，3～5VDC (output 0.5～2.5VDC / RS485, suitable for low-power applications)
Output Signal: 4～20mA、0～10VDC、0.5～4.5VDC、0.25～2.5VDC
Compensated Temperature: -10～70°c
Storage Temperature：-40～120ºC
Working Temperature: -30～85ºC(General type);-20～60ºC(Explosion-proof type);-10～60ºC(Intrinsic safety type)
Resistance：≤((U-12)/0.02) Ω (where U is the supply voltage) or >10KΩ
Insulation Resistance: 500MΩ@ 50VDC
Temperature Coefficient of Zero: ±0.03%FS/ºC(Reference 25ºC)
Temperature Coefficient of Span: ±0.03%FS/ºC(Reference 25ºC)
Long-term stability: +0.1%FS/year
Response Time: ≤1ms (up to 90% FS)
Material: Shell made of stainless steel SUS304 (corrosion-resistant); Internal sensing unit made of 316L (chemical resistance enhanced)
Protection level: IP67 (dustproof and waterproof)
Explosion-proof Grade: Explosion-proof Grade: Intrinsically safe design, explosion-proof rating Ex ia IIC T4, compliant with ATEX, IECEx, FM, CSA, NEPSI, and KEMA standards
Electrical Connection:DIN43650 or M12×1 or Cable Outlet
Process Connection:G1/4″, NPT1/4″, G1/2″, NPT1/2″, and optional flange connections (ANSI, DIN standards)
