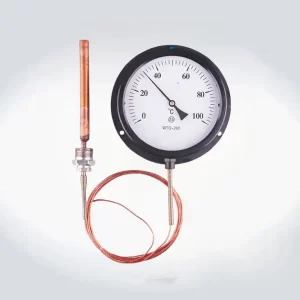

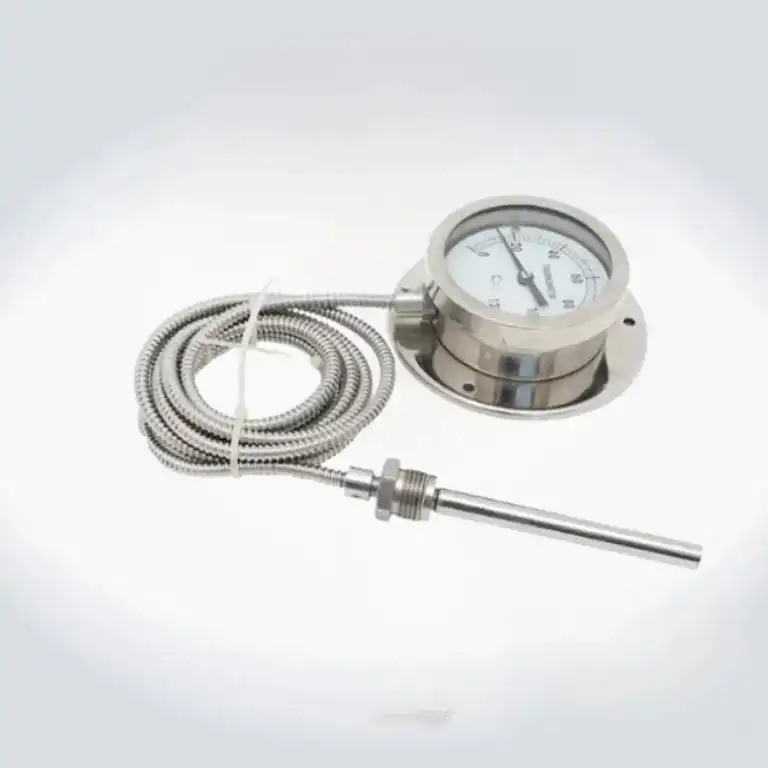

High-Precision Stainless Steel Capillary Thermometer

Product Description

The capillary thermometer is suitable for measuring the temperature of various media that are non-corrosive to copper in industrial settings. If the medium is corrosive, a corrosion-resistant model should be selected. The pressure-type indicating thermometer is widely used for temperature measurement and control during the production processes in machinery, light textiles, chemical, pharmaceutical, and food industries. The corrosion-resistant version of the pressure-type indicating thermometer is made entirely of stainless steel, making it suitable for measuring the temperature of neutral corrosive liquid and gas media.

SpecificationsSpecifications

Product Name: High-Precision Stainless Steel Capillary Thermometer
Model: WTZ-280H,WTQ-280H
Accuracy: ±2.5%
Nominal Diameter: φ150mm
Thread: M27x2、M33x2
Temperature Range: 0-100℃,0-120℃,0-160℃,0-200℃,0-300℃
Capillary Length: 3m,5m,10m,15m,20m,Customizable
Bulb Diameter: 10mm,Customizable
Bulb Length: 138mm,Customizable
Case material: Stainless steel SUS304
Thermalbulb: Stainless steel SUS304
Pipe Duct material: Stainless steel SUS304
Connection material: Stainless steel SUS304
Window: Glass
IPcode: IP65
