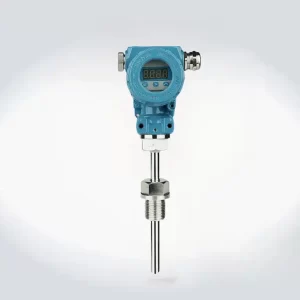

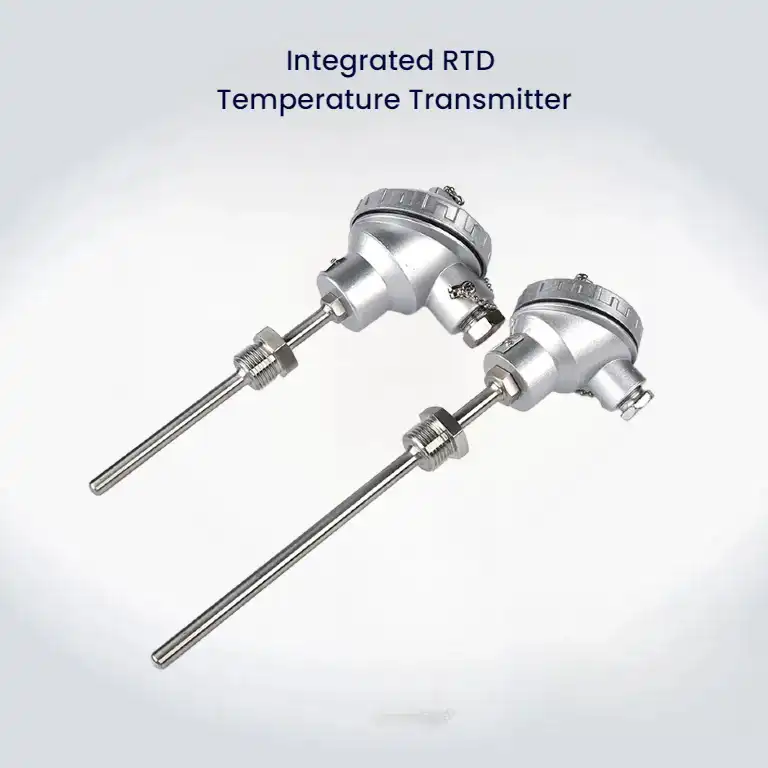

XRT-The Integrated Temperature Transmitter,is designed with precision and reliability at its core. It efficiently converts temperature signals into standardized output. The product adheres to international standards, incorporating advanced sensing elements and robust electronic design, ensuring exceptional performance even in the most challenging environments.
SpecificationsProduct Name: High-precision Integrated Temperature Transmitter
Model: XRTB300
Measurement Range:-200°C～0°C～500°C～1200°C
Accuracy: Standard accuracy,±0.5% FS; Optional high precision,±0.2% FS
Indicator Accuracy: Display accuracy: ±1.0% for LED and LCD displays; ±2.5% for full-scale readings
Supply Voltage:12-36VDC (wide voltage input supported)
Output Signal: 4-20mA (standard), optional RS485 (Modbus RTU)
Ambient Conditions: Operating temperature range: -25°C to +85°C, relative humidity ≤ 95% (non-condensing)
Storage Temperature: -45°C to +125°C
Power Consumption: <0.5W at 24VDC
Long-term stability: +0.1%FS/year
Probe Material: Stainless Steel 304
Probe Diameter:Ø4mm, Ø6mm, Ø8mm, Ø10mm
Probe Length:100mm, 150mm, 200mm, and 300mm
Protection Class: IP65
Process Connection: Clamp, Flange, Screw. Customizable options available upon request
Sensor Types: RTD(Pt100, Pt1000, Pt500); TC(K, E, S, J, T, etc)
Local Indicator: Local display: LCD with backlight, LED indicator
Customization: Customizable insertion depth and probe dimensions to meet specific application requirements
