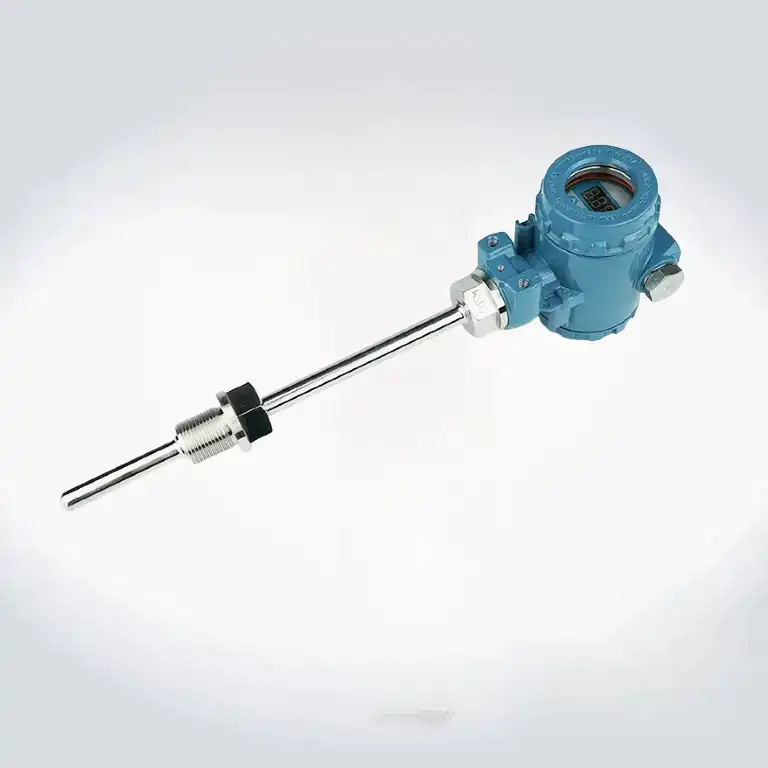

XRT-The Explosion-proof Integrated Temperature Transmitter,embodies precision engineering and robust safety design. This advanced device is meticulously crafted to deliver accurate temperature signal conversion in hazardous environments. Featuring an explosion-proof rating of Ex d IIC T6, it ensures reliable performance in the presence of high-risk gases such as hydrogen, acetylene, and carbon disulfide. Compliant with international standards such as ATEX and IECEx, this transmitter integrates cutting-edge sensing technology with durable materials, offering exceptional stability and efficiency.
SpecificationsProduct Name: High-precision Integrated Explosion-Proof Temperature Transmitter
Model: XRTB301
Measurement Range:-200°C～0°C～500°C～1200°C
Accuracy: Standard accuracy,±0.5% FS; Optional high precision,±0.2% FS
Indicator Accuracy: Display accuracy: ±1.0% for LED and LCD displays; ±2.5% for full-scale readings
Supply Voltage:12-36VDC (wide voltage input supported)
Output Signal: 4-20mA (standard), optional RS485 (Modbus RTU)
Ambient Conditions: Operating temperature range: -25°C to +85°C, relative humidity ≤ 95% (non-condensing)
Storage Temperature: -45°C to +125°C
Power Consumption: <0.5W at 24VDC
Long-term stability: +0.1%FS/year
Probe Material: Stainless Steel 304
Probe Diameter:Ø4mm, Ø6mm, Ø8mm, Ø10mm
Protection Class: IP65
Process Connection: Clamp, Flange, Screw. Customizable options available upon request
Sensor Types: RTD(Pt100, Pt1000, Pt500); TC(K, E, S, J, T, etc)
Explosion-proof Rating: Ex d IIC T6
Local Indicator: Local display: LCD with backlight, LED indicator
Customization: Customizable insertion depth and probe dimensions to meet specific application requirements
