Electric contact pressure thermometers are widely used in mechanical, textile, chemical, pharmaceutical and food industries to measure and control the temperature in the production process. In addition to measuring the temperature of gas, liquid and steam, the electric contact thermometer can send electrical signals when the working temperature reaches or exceeds the set value. The thermometer can also be used to do the circuit contact switch inside the temperature regulating system.

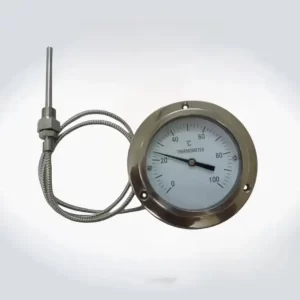

SpecificationsProduct Name: China’s Premier Electric Contact Capillary Thermometer Manufacturer
Model: WTZ-288,WTQ-288
Accuracy: ±2.5%
Nominal Diameter: φ150mm
Thread: M27x2、M33x2
Temperature Range: 0-100℃，0-120℃，0-160℃，0-200℃，0-300℃
Capillary Length: 3m,5m,10m,15m,20m,Customizable
Bulb Diameter: 10mm，Customizable
Bulb Length: 138mm，Customizable
Electric Contact: With upper and lower limit
Contact Rated Power: 10VA
Contact Max.Voltage: 380V AC
Case material: Phenolic plastic
Thermalbulb: Red copper
Pipe Duct material: Capillary tube of red copper
Connection material: Carbon steel
Window: Glass
IPcode: IP65
