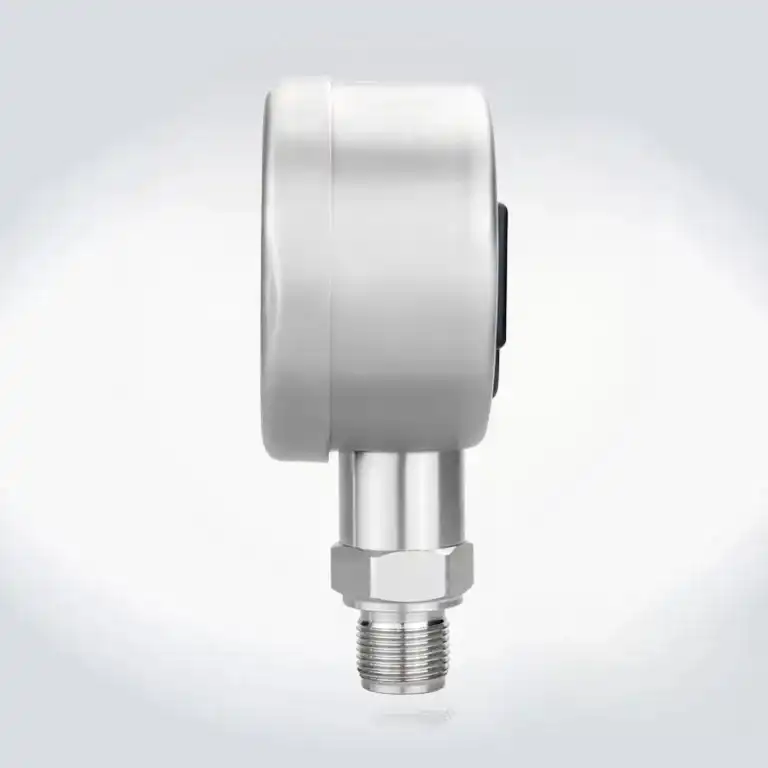

XRT Digital Pressure Gauges are engineered with state-of-the-art technology to deliver accurate, stable, and easy-to-read pressure measurements across a wide range of industrial applications. These gauges are equipped with advanced piezo-resistive sensors that provide high precision and long-term reliability, ensuring consistent performance even in demanding environments. The clear, high-resolution LCD display allows for quick and intuitive readings, making it ideal for both portable and fixed installations.
SpecificationsProduct Name: High Precision Digital Pressure Gauge
Model: YS-60,YS-80,YS-100
Nominal Diameter:φ60mm,φ80mm, φ100mm
Measuring Range: -0.1MPa～60MPa
Pressure Type: Gauge Pressure, Absolute Pressure, Sealed Gauge Pressure
Working Pressure Limit:For pressures below 40MPa, the overload capacity is 150% of the rated pressure; above 40MPa, it is 120%.
Accuracy: ±0.5% FS,±0.25% FS
Long-term Stability: 0.2% FS/Y

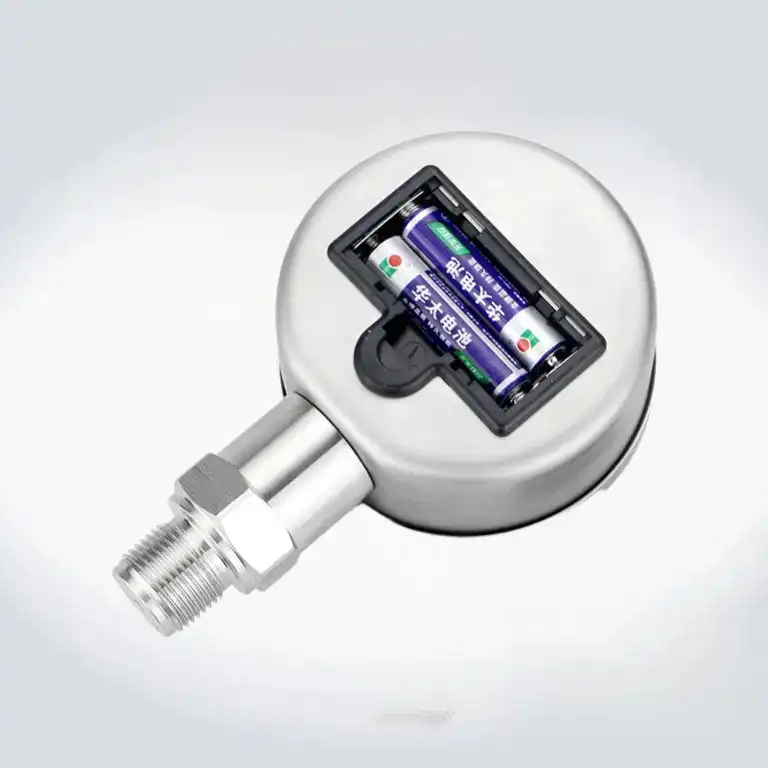

Power Supply:3V
Ambient Temperature: -40℃ to +85℃, Relative Humidity ≤ 85%
Temperature Effect: No More than ±0.4%/10℃ When the Operating Temperature Deviates from 20±5℃
Connection Thread: M14×1.5, M20×1.5,PF(PT/NPT)1/4, PF(PT/NPT)1/2, etc.
Installation Structure: Bottom Mount
Protection Class: IP65
Sampling Frequency: 3 times/second

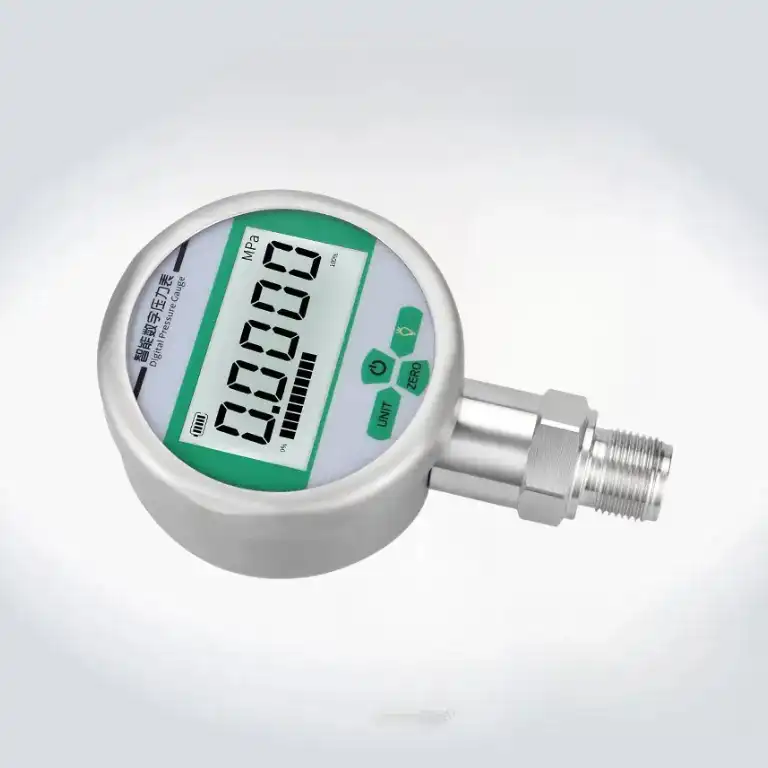

Display: Four-and-a-half-digit LCD Display
Peak Hold: Yes
Casing: Stainless Steel SUS304
Connection: Stainless Steel SUS316L
Window: Safety Glass
