Pressure type thermometer is used for measuring temperature of medium which is not corrosive to copper and copper alloy, and also measuring and controlling the temperature in production process of machinery,textile,chemical,pharmaceutical and foodstuff industries.

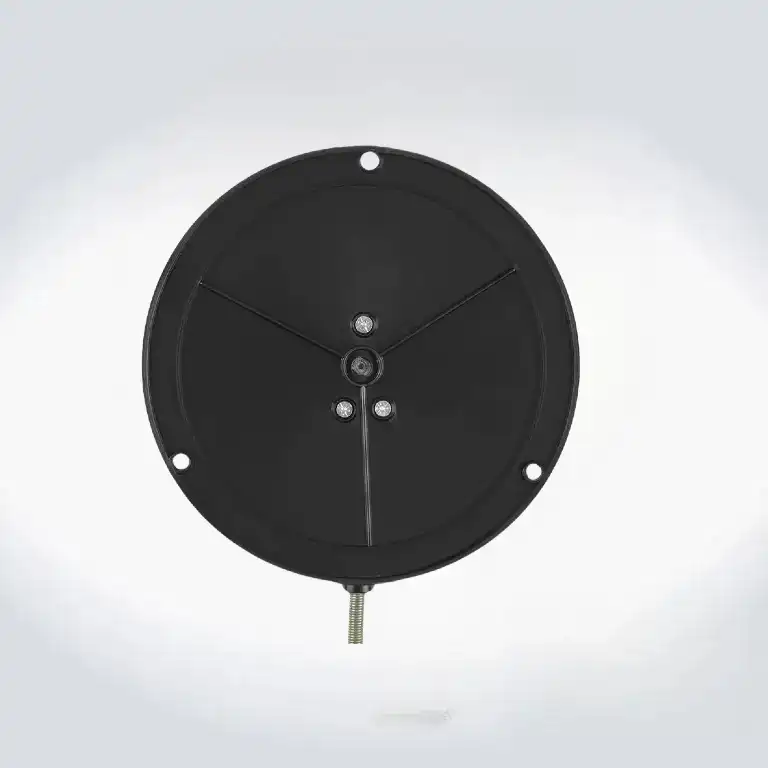

SpecificationsProduct Name: High-Precision Capillary Thermometer with Capillary Tube
Model: WTZ-280,WTQ-280
Accuracy: ±2.5%
Nominal Diameter: φ150mm
Thread: M27x2、M33x2
Temperature Range: 0-100℃，0-120℃，0-160℃，0-200℃，0-300℃
Capillary Length: 3m,5m,10m,15m,20m,Customizable
Bulb Diameter: 10mm，Customizable
Bulb Length: 138mm，Customizable
Case material: ABS
Thermalbulb: Red copper
Pipe Duct material: Capillary tube of red copper
Connection material: Carbon steel
Window: Glass
IPcode: IP65
