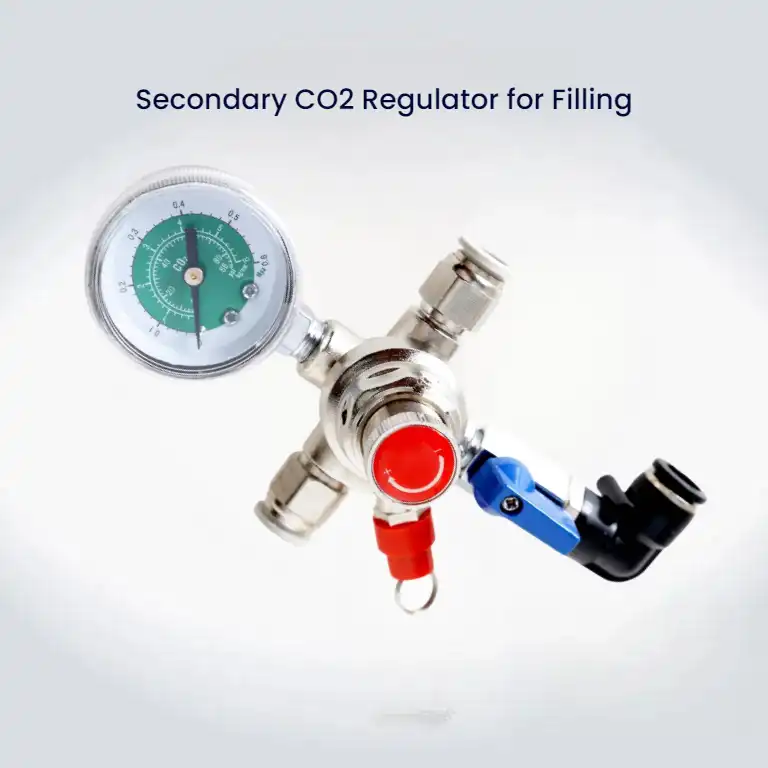

Filling CO2 Gas Pressure Regulator

Product Description

XRT-the Filling CO2 Gas Pressure Regulator, designed for precise and reliable performance in various applications. Both the body and cover are forged from high-quality brass with a polished electroplated finish, ensuring durability and an elegant appearance. The regulator features a pull-ring safety valve for enhanced protection and safer operation. An integrated brass filtration device at the inlet port ensures efficient gas filtering, while the adjustment handwheel provides ease of use and added safety. Equipped with a slow gas release hole, the pressure gauge has passed 25,000 fatigue tests, guaranteeing dependable performance under high-pressure conditions. This regulator offers a sophisticated, safe, and efficient solution for CO2 gas management.

SpecificationsSpecifications

Product Name: Filling CO2 Gas Pressure Regulator
Model: YQT-02
Rated Inlet Pressure: 0~15MPa
Rated Outlet Pressure: 0~0.3MPa
Rated Flow: 0~25L/min
Inlet Thread: G5/8″-RH(F)
Outlet Thread: M14x1.5RH(M)
Body & Cover: They are forged from high-quality brass
The surface is polished and electroplated
The appearance is elegant
Safety Valve: With a pull ring safety valve device, it has double protection and is more safe to use
Inlet Port: The adjustment handwheel is lighter and safer. And there is a built-in patent brass device for gas filtering at the inlet
Pressure Gauge: It is equipped with a slow gas hole and can pass 25000 fatigue test
