The Digital Pressure Switch is an advanced device designed to accurately monitor and control pressure levels in various industrial systems. Combining digital technology with precise pressure measurement, this switch offers improved performance, flexibility, and ease of use compared to traditional mechanical pressure switches. It is ideal for applications that require high-precision pressure control and monitoring, offering features such as adjustable set points, real-time display, and output signals for integration into automated control systems.

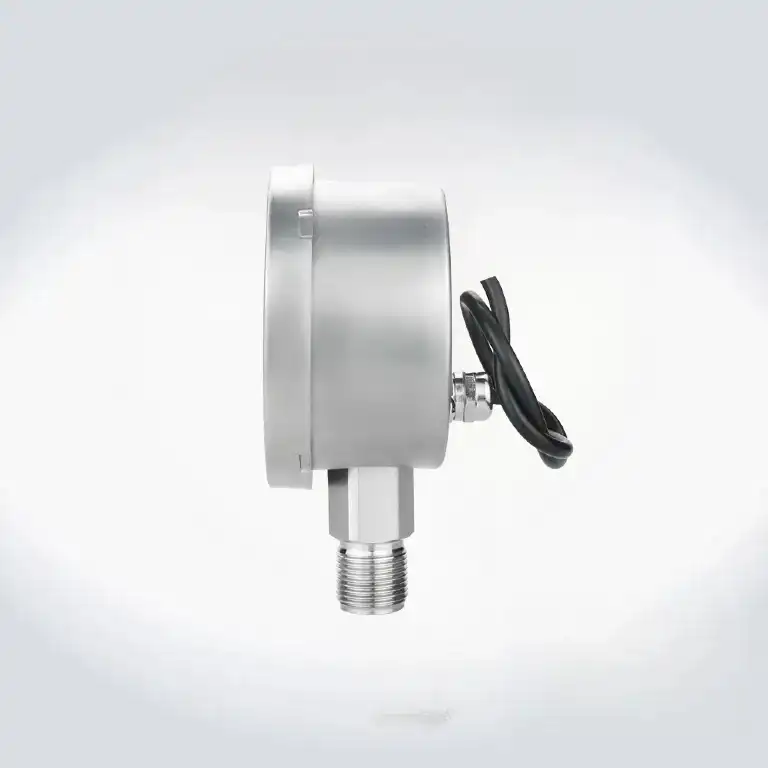

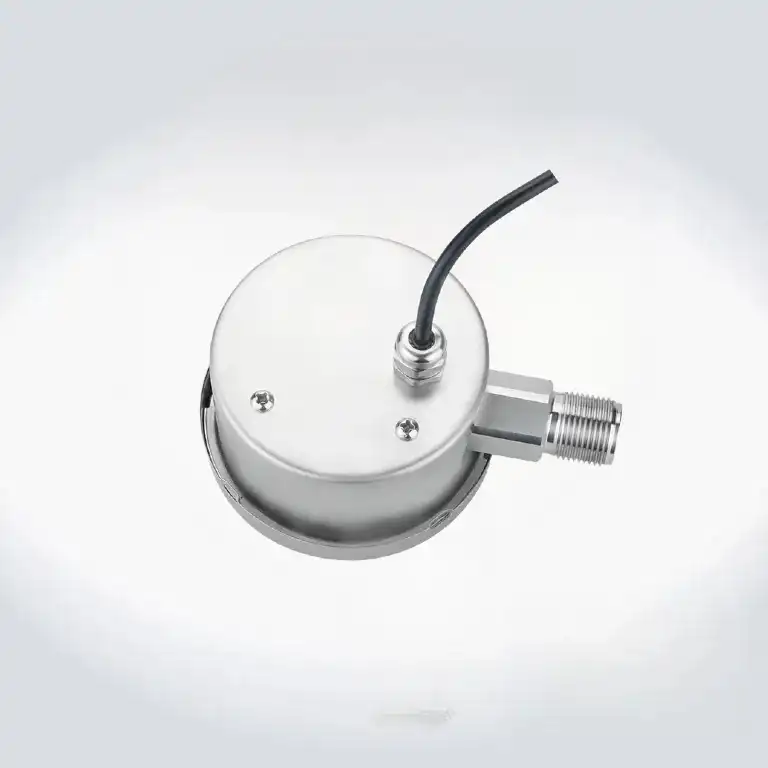

SpecificationsProduct Name: Bottom Mount Stainless Steel Digital Pressure Switch
Model: YSS-80, YSS-100
Nominal Diameter:φ80mm, φ100mm
Measuring Range:
Vacuum Pressure: 0～-1KPa…-100KPa
Gauge Pressure: 0～1KPa, 100KPa, 1MPa…100MPa
Absolute Pressure: 0～50KPa, 100KPa, 1MPa…3.5MPa
Compound Pressure: -1KPa～KPa, -100KPa～20MPa
Pressure Type: Gauge Pressure, Absolute Pressure
Working Pressure Limit:For pressures below 10MPa, the overload capacity is 200% of the rated pressure: above 10MPa, it is 150%.
Accuracy: ±0.5% FS,±0.25% FS
Long-term Stability: 0.5% FS/Y
Power Supply: 24VDC/220VAC/380VAC
Signal Output：4-20mA，RS485
Insulation Resistance:100MΩ，500V DC
Ambient Temperature: -40℃ to +85℃, Relative Humidity ≤ 80%
Connection Thread: M20×1.5,PF(PT/NPT)1/2, etc.
Installation Structure: Bottom Mount
Protection Class: IP65
Sampling Rate: 5 times/second
Display: Four-and-a-half-digit LCD Display
Casing: Stainless Steel SUS304
Connection: Stainless Steel SUS316L
Window: Safety Glass
