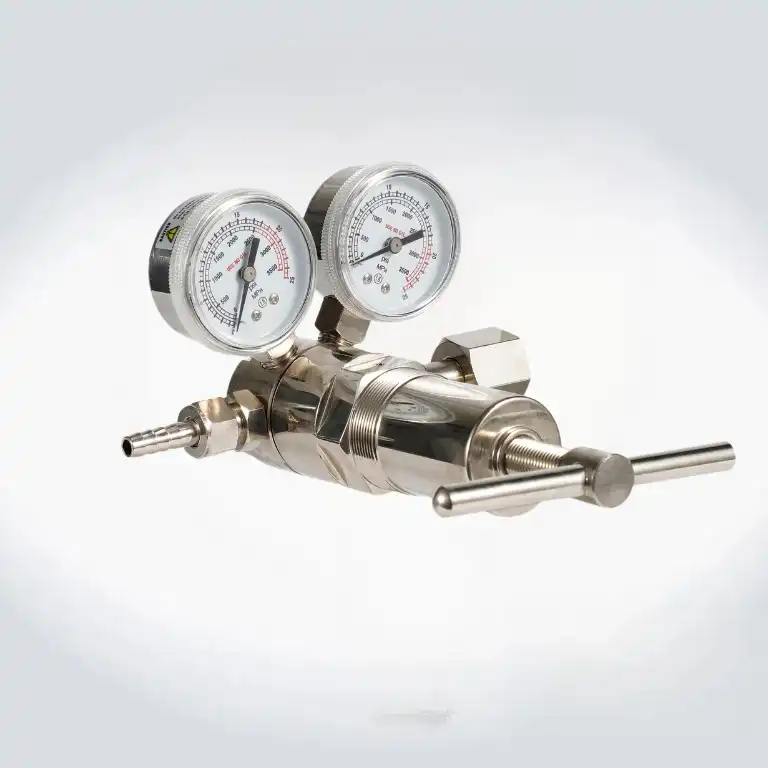

XRT-the 591 Series High Pressure Regulator,with a piston type decompression structure, it is suitable for high-pressure input, high-pressure medium flow output, and its output pressure is stable.Constructed from high-quality brass with a choice of nickel-plated or primary brass finish, this regulator features a piston-type decompression structure for ease of operation. The valve seat is made from SS316L, ensuring durability and resistance to corrosion. It includes a built-in patented brass device at the inlet for efficient gas filtration, effectively removing impurities.
SpecificationsProduct Name: 591 Series High Pressure Regulator
Model: HQ-591 Series
Gas: O2,N2,Ar,H2,Air
H Pressure Gauge: 25MPa,16MPa
L Pressure Gauge: 25MPa,16MPa,10MPa,6MPa
Inlet Thread: 1/4NPT
Outlet Thread: 1/4NPT
Body: Nickel Plated Brass or Brass Primary Color
Cover: Nickel Plated Brass or Brass Primary Color
Valve Seat: SS316L
Structure:
With a piston type decompression structure, it is easy to operate.
It’s forged from high-quality brass.
It can be mounted on a panel.
There is a built-in patent brass device for gas filtering inside the inlet, which can filter impurities in gas.
