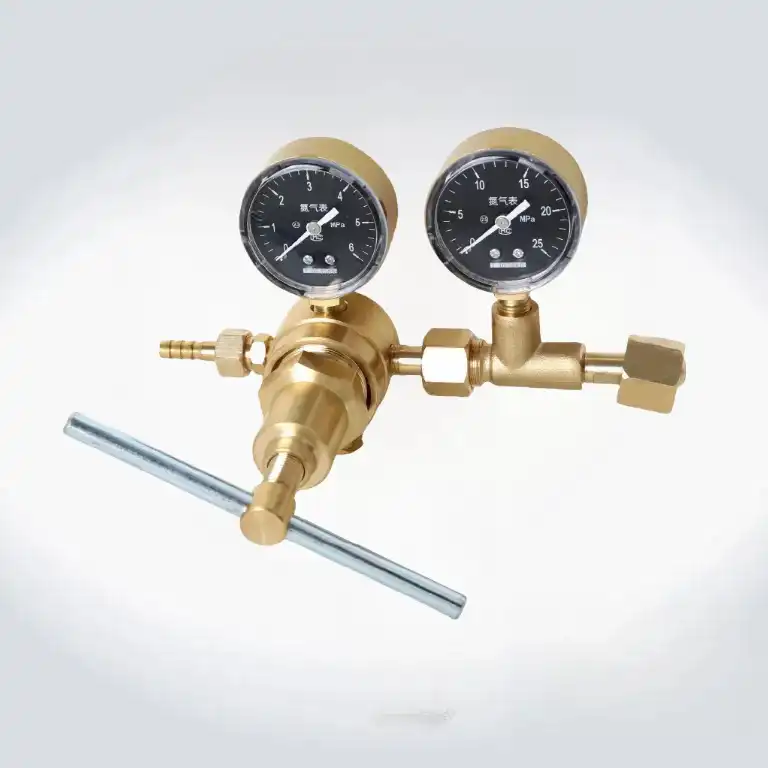

XRT-the 370 series high pressure regulator,suitable for controlling large flow, medium and high pressure gas in laboratory or industrial manufacturing, ensuring exceptional performance and reliability. Forged from high-quality brass with a polished finish, it combines durability and precision, while a patented brass filtration device at the inlet maximizes gas purity. Equipped with an optional polyurethane or natural rubber diaphragm and a high-purity stainless steel spring, it ensures stable and accurate pressure control even in extreme conditions. The integrated pressure gauge features a slow gas release port and has passed rigorous fatigue testing of up to 25,000 cycles, guaranteeing long-term accuracy and dependability in high-pressure environments. Ideal for industrial and laboratory use, the 370 Series sets the standard for engineering excellence and operational safety.
Product Name: 370 Series High Pressure Regulator
Model: YQY-370,YQD-370,YQQ-370
Gas: Oxygen,Nitrogen,Hydrogen
Rated Inlet Pressure:0~15MPa
Rated Outlet Pressure:0~6MPa
Rated Flow: 130~150m³/h
Inlet Thread: G5/8″-RH(F),W21.8-14LH(Hydrogen)
Outlet Thread: M16x1.5RH(M)
Body & Cover: They are forged from high-quality brass. The surface is polished.
Cover Structure: High – quality polyurethane diaphragm and natural rubber diaphragm are optional. With high-purity stainless steel spring, the pressure is more stable and easier to control.
Inlet Port: There is a built-in patent brass device for gas filtering inside the inlet, which increases the filtering area and the filtering efficiency.
Pressure Gauge: It is equipped with a slow gas hole and can pass 25000 fatigue tests.
